GENERAL

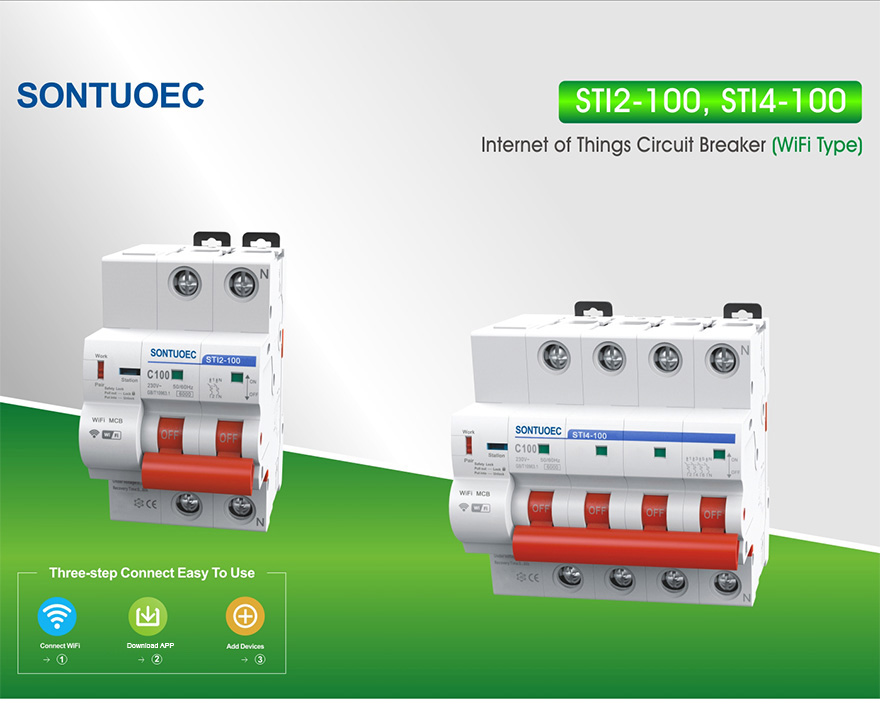

STI2 series IoT circuit breaker is a multi-function intelligent switch that integrates the functions of electricity metering,overload, short circuit, over and under voltage, leakage, over-temperature protection, remote opening and closing, timing,network communication and so on. It can be widely used in smart power management places such as commerce, agriculture,schools, hospitals, hotels, entertainment places, stations, cultural relics protection units, urban street lamp management andcontrol, and can also be widely used in energy consumption management in industrial and mining enterprises, office buildings and other places.

SPECIFICATIONS

Conforming to standards	GB10963.1
Instantaneous trip type	Type C (other types, can be customized)
Rated current	16A、20A、25A、32A、40A、50A、63A、80A、100A
Short-circuit breaking capacity	≥6KA
Short circuit protection	When the line is short-circuited, the circuit breaker is powered off for 0.01s
Overvoltage protection	When the line is over or under voltage, the circuit breaker will be cut off after 3S (can be set) Over / under voltage setting demand setting percentage value
Overload delay protection	According to the rated current of the circuit breaker, it meets the requirements of GB10963.1 standard
Timing control	Can be set according to demand
View	Through the mobile phone APP, you can view the voltage, switch on and off status
Support Voice Control	Work with Amazon Alexa/Google Assistance/IFTTT
Manual automatic integrated control	The mobile phone APP can be automatically controlled, and can also be controlled by the push rod (handle);
communication method	Wireless WIFI
