GENERAL

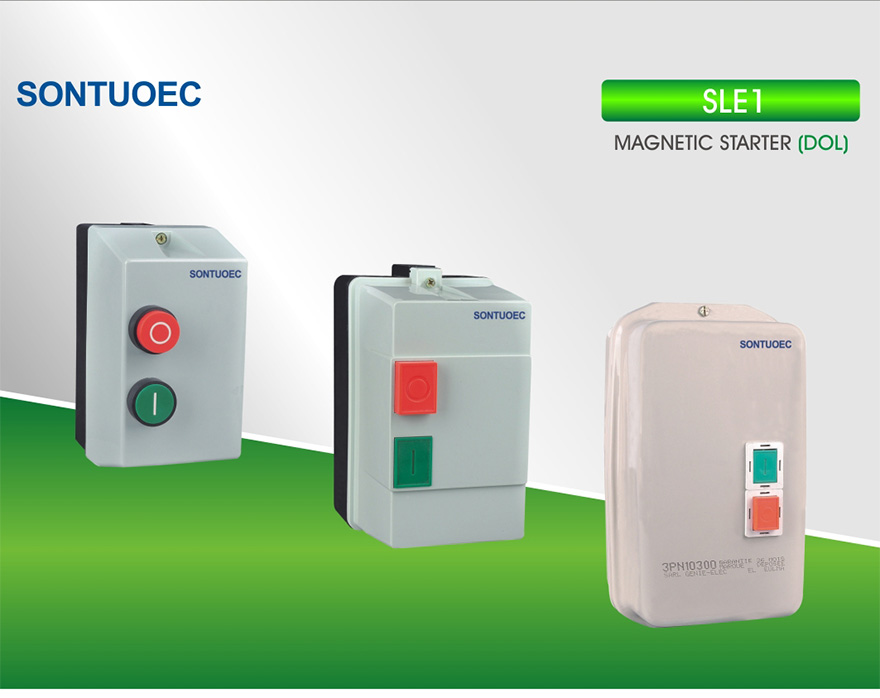

Magnetic Starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequent start and control motor. It has the features of small volume, light, weight, low power consumption, high efficiency,safe and reliable perfomance etc.
SPECIFICATIONS
| Conforming to standards | IEC60947-4-1 |
| Coil voltage | 24, 220, 240,380,415V |
| Rated Current (In) | 9,12,18,25,32,40,50,65,80,95A |
| Frequency | 50/60Hz |

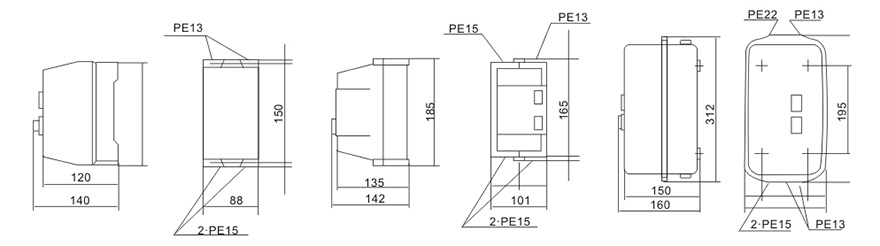

DIMENSION & MOUNTING SIZE
AC CONTACTOR
