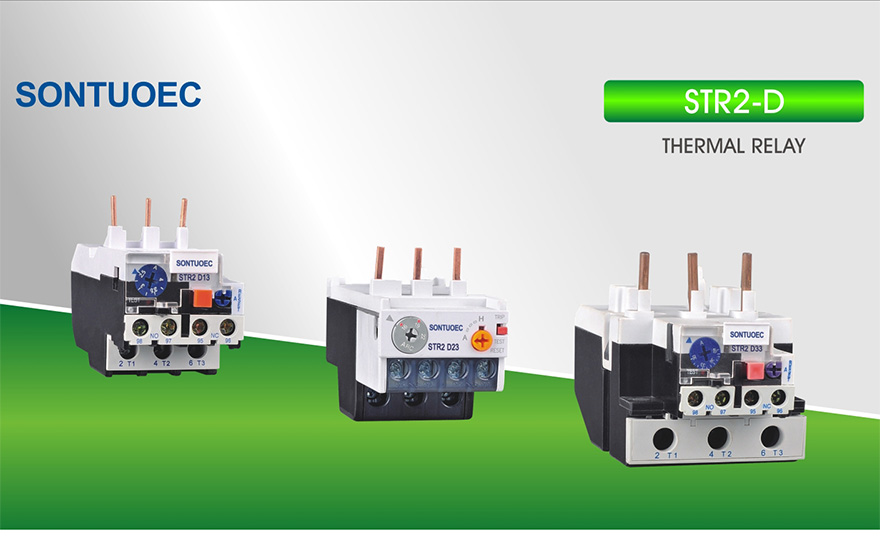

GENERAL

This series of thermal relay can be used In the circult of 50Hz or 60Hz, rated insulation voltage 660V, rated current 93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be pluged in LC1-D/CJX2 serles AC contact

SPECIFICATIONS

Model	Rated current	NO.	Setting Range(A)	For contactor
STR2-25	25	1301	0.1~0.12~0.14~0.16	STR2-9~32
		1302	0.16~0.19~0.22~0.25
		1303	0.25~0.3~0.35~0.4
		1304	0.4~0.05~0.63
		1305	0.63~0.8~0.9~1
		1306	1~1.2~1.4~1.6
		1307	1.6~1.9~2.2~2.5	STR2-12-32
		1308	2.5~3~3.5~4
		1310	4~5~6
		1312	5.5~6~7~8
		1314	7~8~9~10
		1316	9~11~13
		1321	12~14~16~18	STR2-12~32
		1322	17~21~25	STR2-12~32
		1353	23~32	STR2-25/32(LC1-D25/32)
STR2-36	36	2353	23~26~29~32
		2355	28~32~36	STR2-32
		2355	30~40
STR2-93	93	3322	23~26~32	STR2-40~95
		3353	17~25
		3355	30~33~36~40
		3357	37~41~46~50	STR2-50~95
		3359	48~51~60~65
		3361	55~0~65~70	STR2-65~95
		3363	63~71~80	STR2-80/STR2-95
		3365	80~85~93	STR2-95
STR2-140	140		80~104
			95~120
			110~140

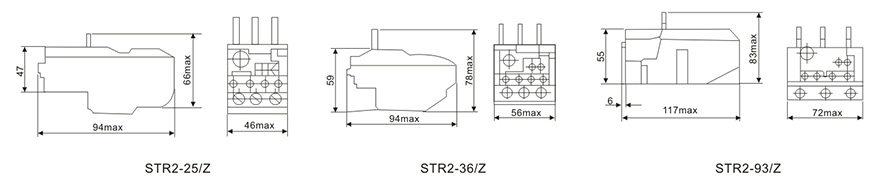

SHAPE AND INSTALLATION DIMENSIONS

AC CONTACTOR
