GENERAL

STC1-D series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz,rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. AC Contactor Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.AC Contactor is produced according to IEC 60947-4-1

SPECIFICATIONS

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power kw					No .of contacts	Installation Method
				220V	380V	415V	440V	660V
STC1-D0910	660	20	9	2.2	4	4	4	5.5	3P+1NO	1 with two screws 235mm din rail
STC1-D0901	660								3P+1NC
STC1-D1210	660	20	12	3	5.5	5.5	5.5	7.5	3P+1NO
STC1-D1201	660								3P+1NC
STC1-D1810	660	32	18	4	7.5	9	9	9	3P+1NO
STC1-D1801	660								3P+1NC
STC1-D2510	660	40	25	5.5	11	11	11	15	3P+1NO
STC1-D2501	660								3P+1NC
STC1-D3210	660	50	32	7.5	15	15	15	18.5	3P+1NO
STC1-D3201	660								3P+1NC
STC1-D4011	660	60	40	11	18.5	22	22	30	3P+NO+NC	1 with three screws 235mm din rail
STC1-D5011	660	80	50	15	22	25	30	33
STC1-D6511	660	80	65	18.5	30	37	37	37
STC1-D8011	660	125	80	22	37	45	45	45
STC1-D9511	660	125	95	25	45	45	45	45

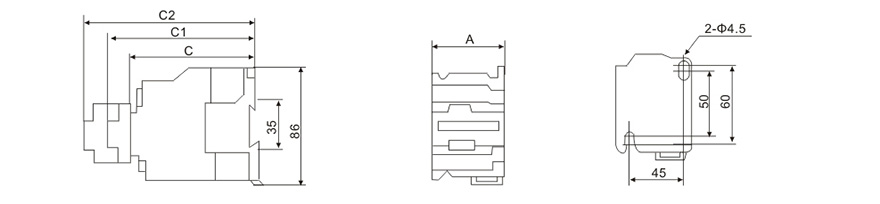

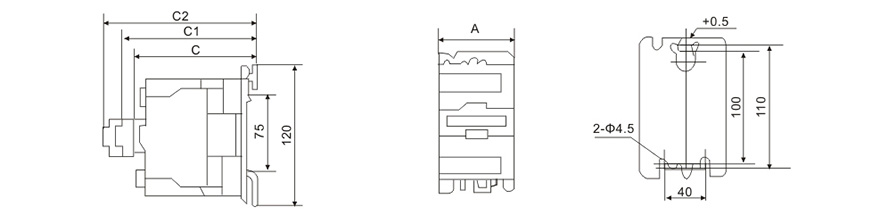

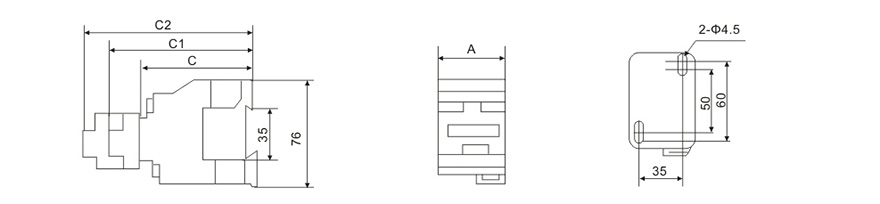

EXTERNAL DIMENSIONS AND CONTACT CONFIGURATIONS

STC1-D09,12,18

STC1-D25~32

STC1-D40~95

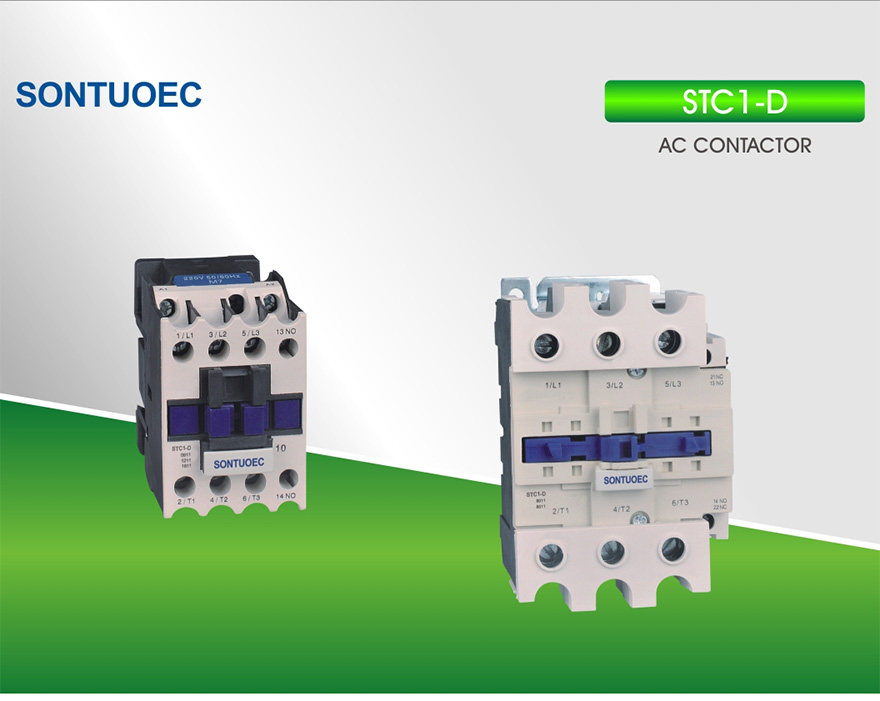

AC CONTACTOR
