SPECIFICATIONS
| Conforming to standards | IEC60947-2 |
| Rated voltage | 230, 400V |
| Rated Current (In) | 400, 630, 1000, 1600, 2500, 3200, 4000, 6300A |
| Frequency | 50/60Hz |
| Pole | 3P, 4P |
| Type | Fixed type, Drawout type |
General

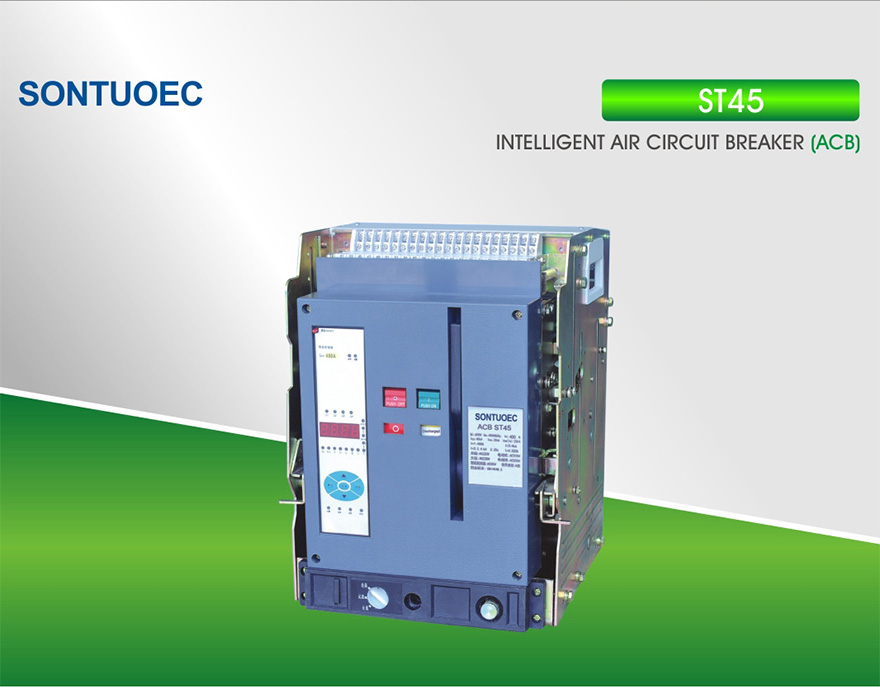

ST45 series DW45 Intelligent Air Circuit Breaker(ACB)is suitable for the circuit of AC 50Hz with rated voltage 400V, 690V and rated current up to 6300A. It is mainly used to distribute electric energy and protect circuits and power-supply equipment from overload, under-voltage, short-circuit and single-phase earthing. with intelligentized and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines(for 690V) and modern high buildings, especially for the distribution system of intelligentized building.
1. Rated AC current: 400A-6300A
2. Short-circuit breaking capacity: 80KA-120KA
3. Rated Voltage: up to AC690V
4. Installation Types: Draw-out type and Fixed type
5. Number of poles: 3 Pole and 4 Pole
6. Operation type: Manual operation & Auto operation

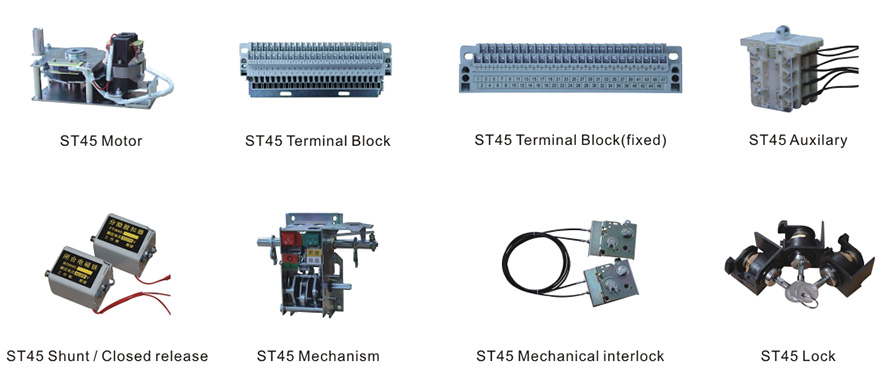

7. Trip types: Intelligent controller, under voltage instant ( or time delay type) trip and shunt trip
8. Intelligent controller categories: L type(Basic type), M type(Standard type), and H type(Communication type)
Technical Data
Type (drawout and fixed Air Circuit breaker) | ST45-2000A | |||
Rated Ultimate short circuit breaking capacity(KA) | Icu=80kA 400V 50KA 690V, Ics==Icw=50kA 400V 40KA 690V, | |||
Rated Current In (A) | 400,630, 800, 1000, 1250, 1600, 2000 | |||
Number of poles | 3 poles, 4 poles | |||
Rated Voltage Ue (V) | 400V, 690V | |||
Rated insulation voltage Ui (A) | 1000V | |||
Rated current of N-pole In ( A) | 50% In, 100% In | |||
Fixed disconnection time | 23-32ms | |||
Intelligent controller | Sandard type (M) | • • • • • • | ||
Communication Type (H) | • • • • • • | |||
Operation Performance | Electric life | 1000 | ||
Mechanical life | Non-maintenance 2500 | |||
Maintenance 10000 | ||||
Connection performance | Horizontal, Vertical | |||
Weight (kg) | Drawer type 3 pole/ 4 pole | 68/77 | 70/80 | 74/81 |
Fixed type 3 pole/ 4 pole | 42/51 | 43/52 | 45/53 | |
Type (drawout and fixed Air Circuit breaker) | ST45-3200A, ST45-4000A | ||
Rated Ultimate short circuit breaking capacity(KA) | Icu=100kA 400V 65KA 690V, Ics==Icw=50KA 400V 50KA 690V, | ||
Rated Current In (A) | 2000, 2500, 3200 , 4000A | ||
Number of poles | 3 poles, 4 poles | ||
Rated Voltage Ue (V) | 400V, 690V | ||
Rated insulation voltage Ui (A) | 1000V | ||
Rated current of N-pole In (A) | 50% In, 100% In | ||
Fixed disconnection time | 23-32ms | ||
Intelligent controller | Sandard type (M) | • • • • | |
Communication type (H) | • • • • | ||
Operation Performance | Electric life | 500 | |
Mechanical life | Non-maintenance 2500 | ||
Maintenance 10000 | |||
Connection performance | Horizontal, Vertical | ||
Weight (kg) | Drawer type 3 pole/ 4 pole | 94.5/117 | 94.5/117 |
Fixed type 3 pole/ 4 pole | 52.5/65.5 | ||
Type (drawout and fixed Air Circuit breaker) | ST45-6300A | ||
Rated Ultimate short circuit breaking capacity(kA) | Icu=120kA 400V 80KA 690V, Ics==Icw=100KA 400V 65KA 690V, | ||
Rated Current In (A) | 4000, 5000, 6300A | ||
Number of poles | 3 poles, 4 poles | ||
Rated Voltage Ue (V) | 400V, 690V | ||
Rated insulation voltage Ui (A) | 1000V | ||
Rated current of N-pole In (A) | 50% In, 100% In | ||
Fixed disconnection time | 23-32ms | ||
Intelligent controller | Sandard type (M) | • • • | |
Communication type (H) | • • • | ||
Operation Performance | Electric life | 500 | |
Mechanical life | Non-maintenance 2000 | ||
Maintenance 80000 | |||
Connection performance | Horizontal, Vertical | ||
Weight (kg) | Drawer type 3 pole/ 4 pole | 210/233 | 233 |
