GENERAL

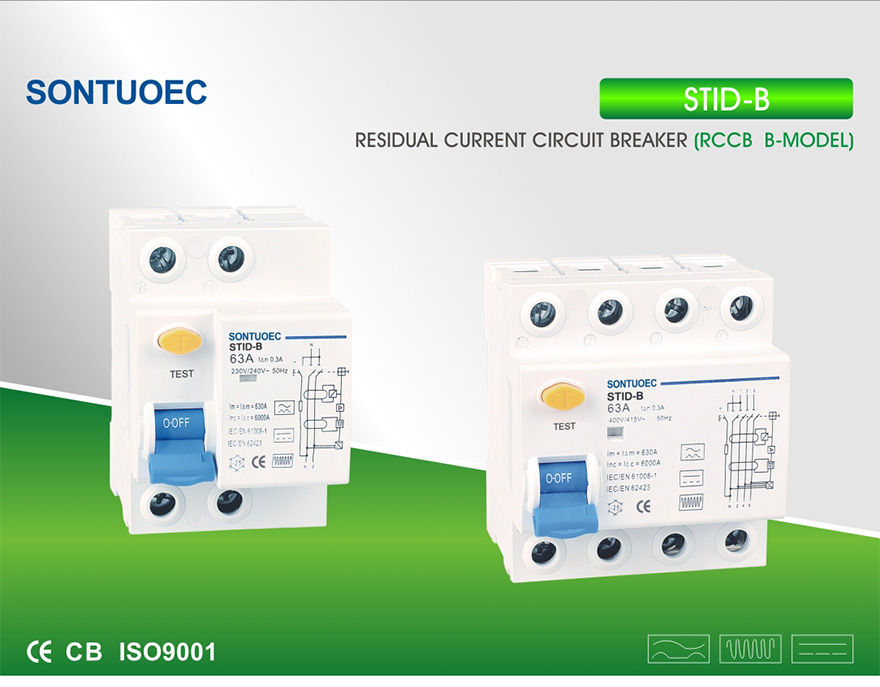

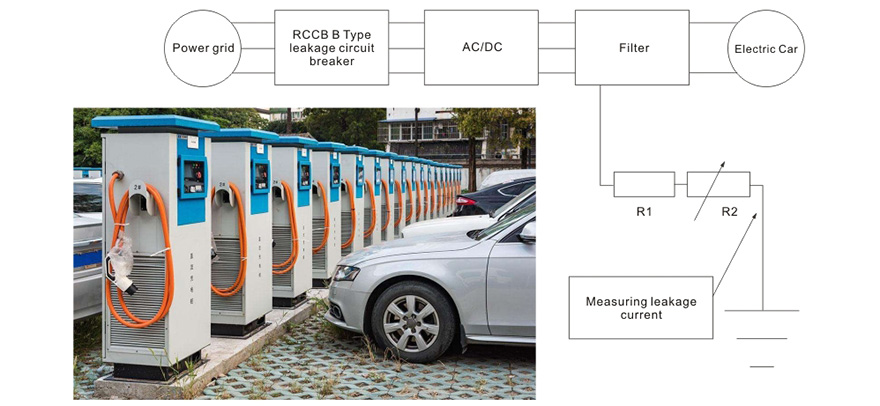

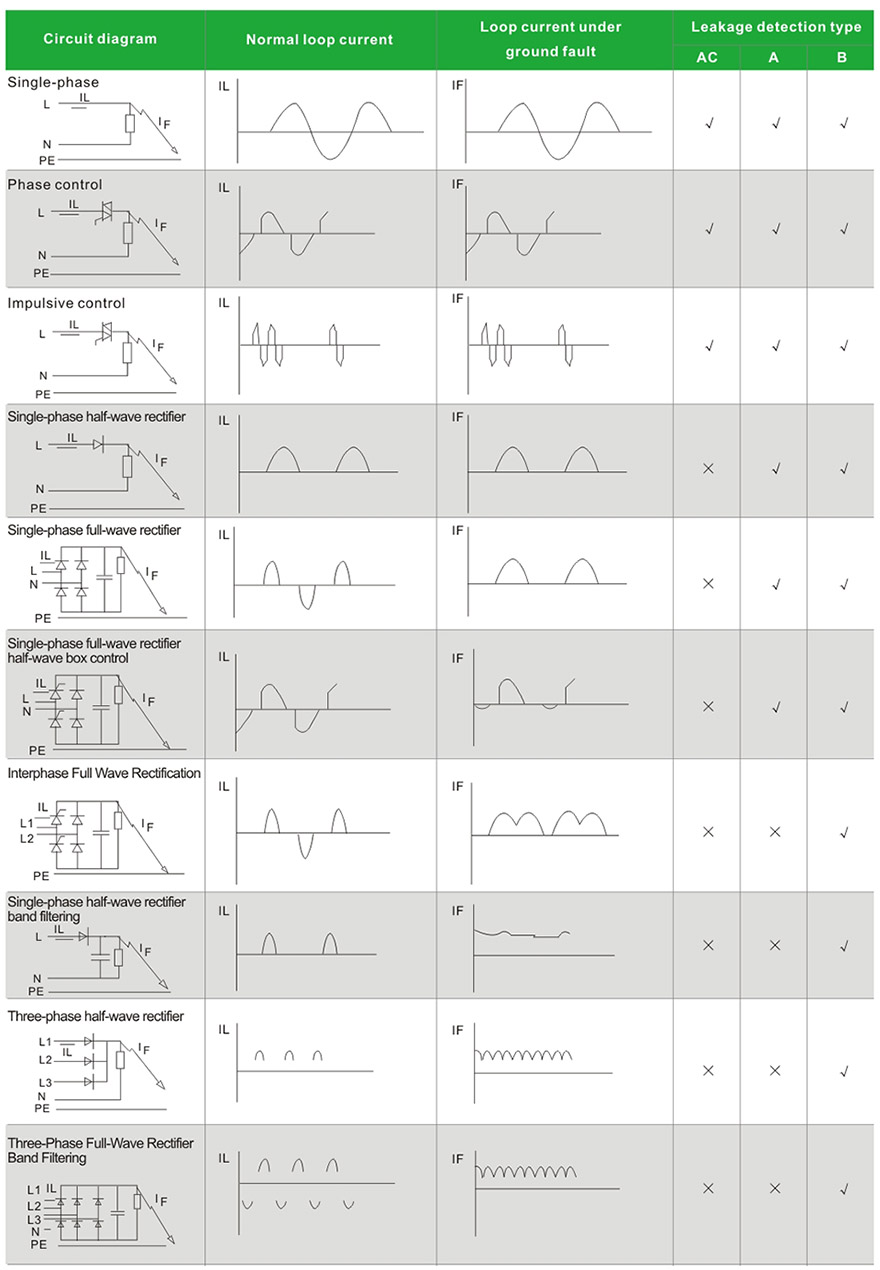

STID-B RCCB B model is worked on type A and in additon for smooth DC residual currents, residual DC currents that may result from rectifying circuits and high frequency AC residual currents. It protects in the event of contunuous fault current on three phase networks.It usually is used in the field of Recharging Station,Medical Apparatus and Instruments, Controllers and Variable Speed Drives,Batter Charges and Inverters(DC)...STID-B complys with IEC/EN61008 and IEC/EN62423 standard.
SPECIFICATIONS
SPECIFICATIONS
| Standard | Unit | IEC/EN62423&IEC/EN61008-1 | |
Electrical features | Type(wave form of the earth leakage sensed) | B | |
| Rated current In | A | 25, 40,63 | |
| Poles | 1P+N, 3P+N | ||
| Rated voltage Ue | V | IP+N:230/240V; 3P+N:400/415V; | |
| Rated sensitivity I△n | A | 0.03, 0.1, 0.3 | |
| Insulation voltage Ui | V | 500 | |
| Rated residual making and | A | 500(In=25A/40A) | |
| breaking capacity I△m | 630(In=63A) | ||
| Short-circuit current I△c | A | 10000 | |
| SCPD fuse | A | 10000 | |
| Rated Time under I△n | A | ≤0.1 | |
| Rated frequency | Hz | 50 | |
| Rated impulse withstand voltage(1.2/5.0)Uimp | V | 4000 | |
Mechanical features | Dielectric test voltage at ind. Fred. for 1min | KV | 2.5 |
| Pollution degree | 2 | ||
| Electrical life | 2000 | ||
| MechanicaI Iife | 10000 | ||
| Fault current indicator | Yes | ||
| Protection degree | IP20 | ||
| Installation | Ambient temperature (with daily average≤35℃) | ℃ | -40~+55℃ |
| Storage temperature | ℃ | -40~+70℃ | |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar | ||
| Terminal size top/bottom for cable | mm2 | 25/35 | |
| AWG | 18-3/18-2 | ||
| Terminal size top/bottom for busbar | mm2 | 10/16 | |
| AWG | 18-8/18-5 | ||
| Tightening torque | N*m | 2.5 | |
| In-lbs. | 22 | ||
| Mounting | On DIN rail EN 60715(35mm) by means of fast clip device | ||
| Connection | From top and bottom |

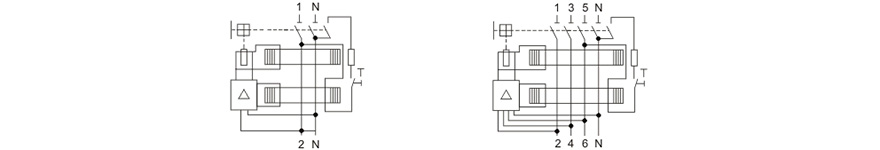

WIRING DIAGRAM

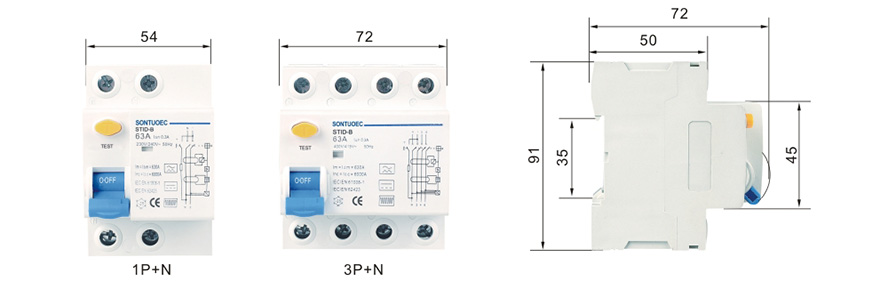

OVERALL AND MOUNTING DIMENSIONS(MM)
RESIDUAL CURRENT CIRCUIT BREAKER : A/AC type
