GENERAL

STG is mainly used in AC 50Hz(60Hz), rated voltage 230/400V, rated current 5A to 90A low voltage terminal distribution system. RCBO is equal with MCB+RCD function;The rated current can be adjusted as per the Customers' request; It is used for electric shock protection and human indirect contact protection, electric equipment protection when human body touching electricity or electric network leak current exceeds stipulated value,and over load and short circuit protection ; It can also be a non-frequency operator in the circuit, wildly used in the residential and commercial district.

SPECIFICATIONS

Conforming to standards	IEC61009, IEC60947-2
Mode	Electro-magnetic type ,electronic type
Rated voltage	230, 400V
Rated Current (In)	5~15A(5,10,15)A;10~30A(10,20,30)A; 10~30A(10,15,20,25,30)A 30~60A(30,45,60)A; 60~90A(60,75,90)A
Rated sensitivity I△n	300,500(mA)
Breaking Capacity	3KA, 6KA,8KA
Pole	2P, 4P
Frequency	50/60Hz

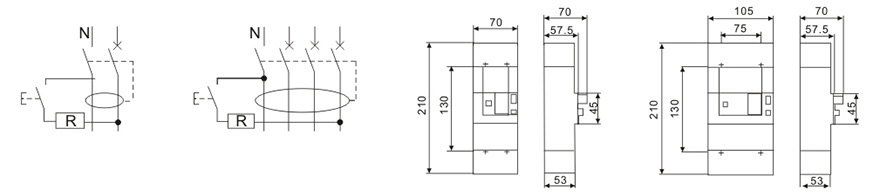

WIRING DIAGRAM / OVERALL AND MOUNTING DIMENSIONS(MM)

RESIDUAL CURRENT CIRCUIT BREAKER WITH OVER CURRENT PROTECTION (RCBO)
