GENERAL

RCBO is mainly used in AC 50Hz(60Hz), rated voltage 230V(1P+N), rated current 6A to 40A low voltage terminal distribution system. RCBO is equal with MCB+RCD function; It is used for electric shock protection and human indirect contact protection,electric equipment protection when human body touching electricity or electric network leak current exceeds stipulated value,and over load and short circuit protection ; It can also be a non-frequency operator in the circuit, wildly used in the residential and commercial district. It complies with standard of IEC61009-1.

SPECIFICATIONS

SPECIFICATIONS

	Standard	Unit	IEC/EN 61009-1
Electrical features	Mode		Electronic type
	Type(wave form of the earth leakage sensed)		A, AC

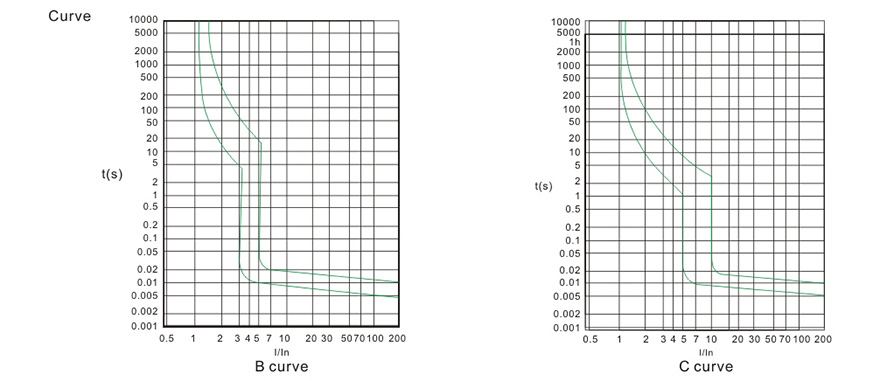

	Thermo-magnetic release characteristic		B,C,D
	Rated current ln	A	6,10,16,20,25,32,40
	Poles	P	1P+N
	Rated voltage Ue	V	AC 230
	Rated sensitivity I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Rated residual making and breaking capacity l△m	A	500
	Rated short-circuit capacity Icn	A	4500, 6000
	Break time under I△n	S	≤0.1
	Rated frequency	Hz	50/60
	Rated impulsewithstand voltage(1.2/50)Uimp	V	4000
	Dielectric test voltage at ind.Freq for 1min	kV	2
	Insulation voltage Ui	V	250
	Pollution degree		2
Mechanical features	Electrical life		4000
	Mechanical life		10000
	Fault current Indicator		Yes
	Protection degree		IP20
	Ambient temperature (with daily average≤35℃)	℃	-5~+40(Special application please refer to temperature compensation correction)
	Storage temperature	℃	-25~+70
Installation	Terminal connection type		Cable/Pin-type busbar/U-type busbar
	Terminal size top/bottom for cable	mm2	25
		AWG	18-5
	Terminal size top/bottom for busbar	mm2	25
		AWG	18-3
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top

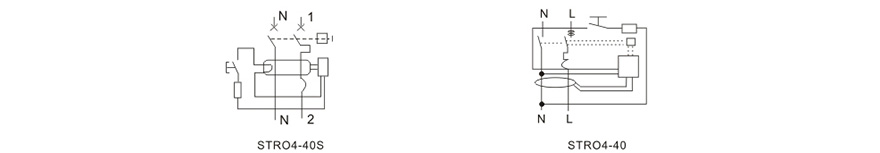

WIRING DIAGRAM

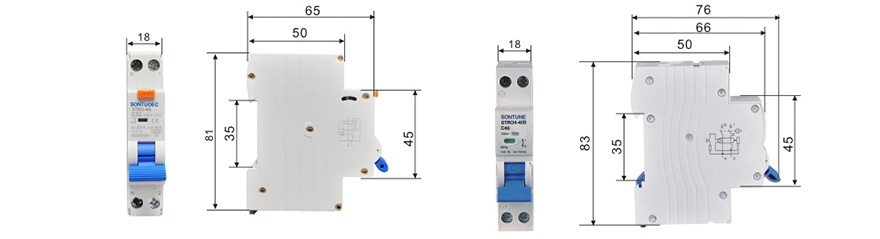

OVERALL AND MOUNTING DIMENSIONS(MM)

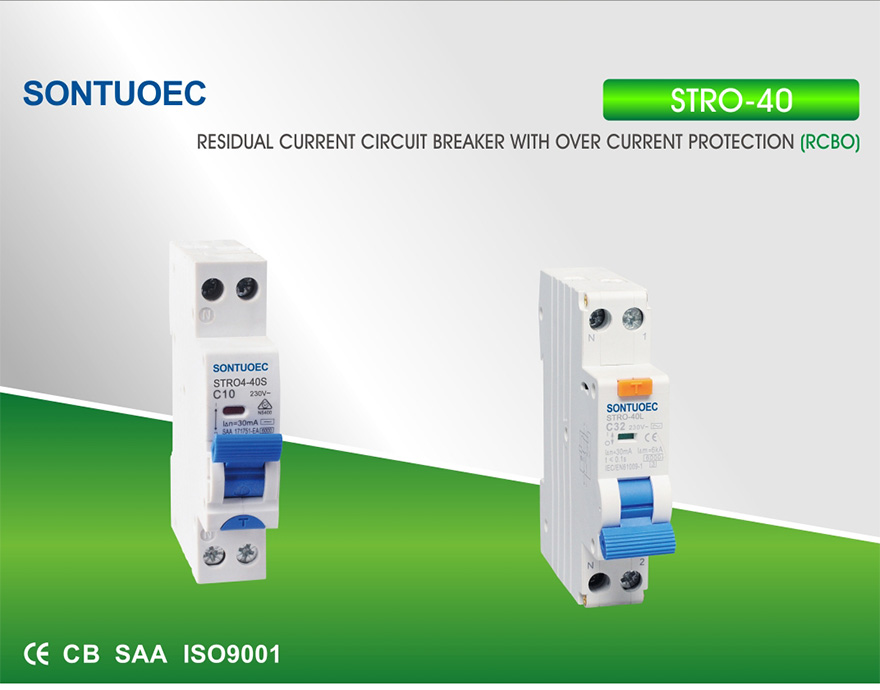

RESIDUAL CURRENT CIRCUIT BREAKER WITH OVER CURRENT PROTECTION (RCBO)
